KNNJOO brand shot blasting machine for cleaning Engine connecting rod
KNNJOO brand shot blasting machine description
The turntable shot blasting machine is suitable for the cleaning of flat, thin-walled, sand-sticky scale and other attachments on the surface of the parts that are afraid of collision. Through shot blasting, not only can the rust on the surface of the workpiece be removed, rust and dirt on various workpieces can be cleaned, and the surface quality of the workpiece can be improved; at the same time, the fatigue fracture resistance of the processed workpiece can be improved to prevent fatigue failure and plastic deformation And brittle fracture, improve the fatigue life of the processed workpiece.
Technical datas
| type item | | ZJ012 | ZJ012F | ZJ012F |
| Size of cleaning chamber | mm | Ø1350*560 | Ø1350*860 | Ø2654*560 |
| size of cleaning piece | mm | 600*250*250 | 600*250*250 | 1000*500*250 |
| Turn table | loading capacity | kg | 400 | 400 | 1000 |
| diameter | mm | Ø1200 | Ø1200 | Ø2500 |
| Blasting apparatus | abrasive flow rate | kg/min | 200 | 2*150 | 2*250 |
| power | kw | 11 | 7.5*2 | 15*2 |
| Lifiting amount of elevating conveyor | t/h | 15 | 15 | 30 |
| Separating amount of separator | t/h | 15 | 15 | 30 |
| Abrasive initial filling | kg | 400 | 350 | 1500 |
| Ventilation capacity | m3/h | 2800 | 2800 | 5200 |
| Outline dimensions | mm | 1500*3450*3780 | 1900*1900*4165 | 4260*3647*5366 |
| Powe(excluding dedusting) | kw | 17.3 | 18.7 | 35.2 |
Features
The arrangement of the shot blasting chamber and the shot blasting device are determined after the computer three-dimensional dynamic ejection simulation, so that the coverage area of the thrown projectile stream accurately covers the surface of the workpiece, and the projectiles are simultaneously thrown to the surface of the workpiece from all directions of the workpiece. The direct-connected centrifugal shot blasting device with high ejection speed using Swiss +GF+ technology can significantly improve cleaning efficiency and obtain satisfactory cleaning quality. The machine has a novel design concept, compact structure, and convenient use and maintenance.
Our company
Qingdao KNNJOO machine Inc. is the subsidiary corporation of joint venture set up by Qingdao foundry machine CO.,LTD. and taiwan APC company, the company is mainly manufacture advanced shot blasting machine, shot blasting equipment and foundry machine. The company introduct and develop more than one hundred kinds of shot blasting machine and shot peening machine, more than 20 products filling a domestic gap in this field, the products applied to many well-known enterprises such as Thyssen Krupp, SIEMENS, FAW-Volkswagen, Cummins engine, Dongfeng Automobile,Weichai Power, Jinan heavy duty truck, China high-speed rail, Bombardier, Chery Automobile, Mercedes-Zenz, Hitachi nuclear industry, Fuji Heavy Industries, Tangshan gear, AISIN, ALSTOM, Doosan, Caterpillar and etc. And the products are exported to 49 countries around the world such as Spain, France, United States, South Korea, Japan, Singapore, Australia, Russia and etc. The company enjoy a high reputation and reputation in the world.
Product Tags:
|
|

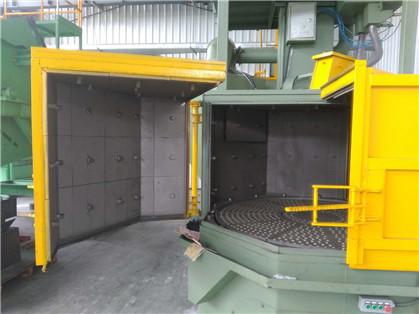

Cleaning Engine Connecting Rod 200kg/Min Industrial Shot Blaster Images
|
